- SKU:
- EN4SD16128LG
- UPC:
- 623980069050
- Weight:
- 21.00 LBS
- Dimensions:
- 16in x 12in x 8in
- Material:
- Mild Steel
- Enclosure Type:
- Wall Mounted
- Cover Type:
- Opaque
- Closure Type:
- Quarter Turn Latch
- Mounting Type:
- Through Holes

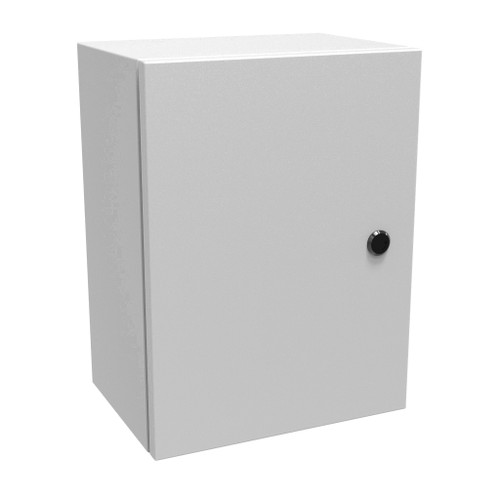

Representative image shown
EN4SD16128LG
Type 4 Mild Steel Enclosure with Hinged Cover and Quarter Turn Latch
$249.05
Factory New
Hammond Manufacturing
Hammond, Eclipse Series, Type 4 Mild Steel Wallmount Enclosure, Hinge Door with Quarter Turn/Handle, N4,12 Eclipse enclosure, 16 x 12 x 8, Steel/Lt. Gray, UL 508A Type 3R, 4, and 12
Representative image shown
Trusted Accessories
Versions (6)
Product Details
Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications. Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete package.
Finish
Finish
Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
Construction
Construction
Formed 14 or 16 gauge steel. Smooth, continuously welded seams ground smooth. Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options. Formed lip on enclosure to exclude flowing liquids and contaminants. Door latches feature the added safety of quarter turn slot requiring use of tool for opening. Doors may be easily removed for modifications and are interchangeable. Seamless poured-in place gasket. Collar studs provided for mounting inner panel. Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes. Bonding stud provided on door and grounding stud installed in enclosure. Hinges are constructed from 304 stainless steel. Hinge pins are stainless steel. Quarter turn latch and multi-point handle (key lockable) are zinc diecast with black epoxy finish. Door alignment guide provided on 36" wide enclosures.
Standards
Standards
UL 508 Type 3R, 4, and 12 CSA Type 3R, 4, and 12 Complies with NEMA Type 3R, 4, and 12 IEC 60529, IP66
Documents for
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
Versions (6)
Related Products
Warranty Information
All products manufactured by Hammond are warrant to be free from defects in materials and workmanship for a period of one (1) year from date of shipment from its plant. If within such period any such goods shall be proven to Hammond’s satisfaction to be defective, such goods shall be repaired or replaced at Hammond’s option. Such corrections or replacement of defective goods shall constitute a fulfillment of all liabilities in respect to such goods.
Under no circumstances will credit be allowed for unauthorized rework on any materials. Please contact your local Hammond Representative for warranty information pertaining to any Hammond offered product not manufactured by Hammond.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Hammond shall not be liable for damages to goods, property, or persons due to improper installation or through attempts to utilize the goods under conditions which exceed the designed capabilities.
