- SKU:
- DTS3021A230LG
- UPC:
- 623980282152
- Weight:
- 30.00 LBS
- Width:
- 7.00 in
- Height:
- 15.50 in
- Depth:
- 7.75 in
- Accessories:
- Air Conditioners

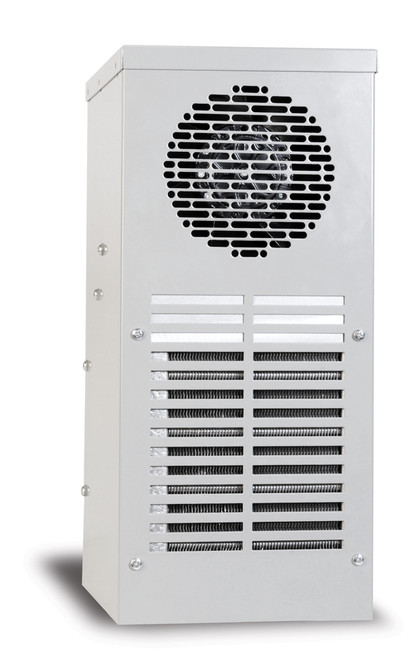

Representative image shown
DTS3021A230LG
AC Unit (900-1300 BTU/H, 230 V, NEMA 12, Light Gray)
$2,557.89
Factory New
Hammond Manufacturing
Hammond, DTS Series, 900-1300 BTU/H Indoor Air Conditioner, Type 12, Side Mounting, 230 V, NEMA 12, Lt. Gray, Maintains enclosure's NEMA 12 rating
Representative image shown
Trusted Accessories
Versions (2)
Product Details
Description
Description
- Compact design for side mounting on any enclosure surface where hot spot cooling or low capacity cooling is required.
- Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- Air conditioners are shipped separately and installed on site
Standards
Standards
- Maintains enclosure's NEMA 12 rating
- IP 54
- UR, cUR and CE
Features
Features
- R134a refrigerant.
- Thermostat control accessible from inside enclosure.
- Expansion valve increases efficiency with improved evaporator heat transfer and less frequent compressor operation.
- Direct condensate discharge via 1/4" NPT threaded port.
- Continuous air circulation from high capacity fans.
- EMI/RFI suppression meets CE.
- Door contact for power down when enclosure door is opened.
- Gasket, mounting kit and template for cutout and drilling are included.
- Washable aluminum mesh filter
Specifications
Specifications
| Rated Voltage | 230 V 50/60 Hz |
|---|---|
| Range of Operation | 207-253 V |
| Power Consumption | 253 W |
| Running Amps | 1.1 A |
| Starting Current | 5 |
| Line Cord | With Plug |
| Cooling Capacity +95/+95F +35/+35C | 1194 BTU/h (350 Watts) |
| Type of Refrigerant | R134a |
| Refrigeration Charge | 145 g |
| Adjustable Control Range | +50F..104F / +10C..+40C Factory setting +95F/+35C |
| Max Ambient Air Temp | +114F (+45C) |
| Min Ambient Air Temp | +46F (+8C) |
| Air Capacity (unrestricted) | Internal 37 CFM External 99 CFM |
| Condensation Discharge | Condensate Drain |
| Filter Mat | Aluminum Mesh |
| Db noise level | <64 db |
| Unit Weight | 30 lbs (13.6kg) |
| Exterior Case | Galvanized sheet metal |
| Finish | RAL7035 light Gray |
| Nema Rating | enclosures IP54 / NEMA 12 |
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
Versions (2)
Related Products
Warranty Information
All products manufactured by Hammond are warrant to be free from defects in materials and workmanship for a period of one (1) year from date of shipment from its plant. If within such period any such goods shall be proven to Hammond’s satisfaction to be defective, such goods shall be repaired or replaced at Hammond’s option. Such corrections or replacement of defective goods shall constitute a fulfillment of all liabilities in respect to such goods.
Under no circumstances will credit be allowed for unauthorized rework on any materials. Please contact your local Hammond Representative for warranty information pertaining to any Hammond offered product not manufactured by Hammond.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Hammond shall not be liable for damages to goods, property, or persons due to improper installation or through attempts to utilize the goods under conditions which exceed the designed capabilities.
