  • CS24244 | 24in x 24in x 4in Type 1 Mild Steel Enclosure with Screw Cover

CS24244

Type 1 Mild Steel Enclosure with Screw Cover
CS24244 Hammond Manufacturing 24in x 24in x 4in Type 1 Mild Steel Enclosure with Screw Cover

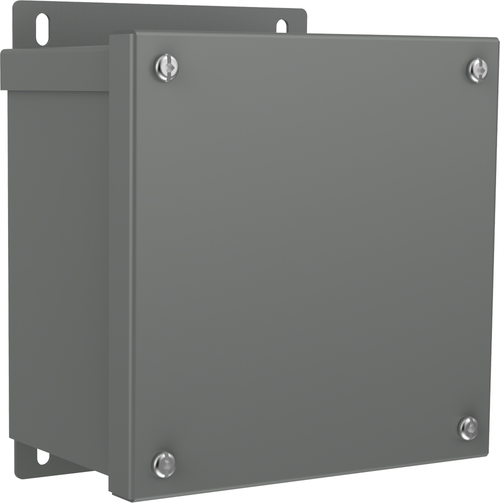

Representative image shown

$103.05
$203.79
Product Condition: New

Hammond, CS Series, Type 1 Mild Steel Junction Box, Screw Cover and without Knockouts, NEMA Type 1 rated, 24x24x4, 16 Gauge steel

SKU:
CS24244
UPC:
623980360225
Weight:
33.00 LBS
Width:
24.00 in
Height:
24.00 in
Depth:
4.06 in
Dimensions:
24in x 24in x 4in
Material:
Mild Steel
Enclosure Type:
Wall Mounted
Cover Type:
Opaque
Closure Type:
4-Screw Lift-Off
Mounting Type:
Through Holes
Decrease Quantity: Increase Quantity:

NEMA Rating

  • N1
    Indoor
    Protection from fingers, tools and small objects
  • N12
    Indoor
    Protection from dust and light splashes of water
  • N3R
    Outdoor
    Protection from rain, snow and sleet
  • N4
    Outdoor
    Protection from rain, snow, sleet, and hose directed water
  • N4X
    Outdoor
    Protected from rain, snow, sleet, and pressure rated hose directed water from all angles

Application

  • Designed for general purpose indoor commercial use as a junction, pull or switch box.

Standards

  • UL-50 Type 1
  • CSA Type 1
  • Complies with
    • NEMA Type 1
    • IEC 60529, IP20

Construction

  • Formed and spot welded from 16 gauge (up to 30"x24"), 14 gauge (36"x24") or 12 gauge (36"x36") steel.
  • Flat steel covers fastened with plated steel screws.
  • Keyhole slots permit cover to be lifted off without removing screws entirely.
  • Through holes in back for wall mounting.
  • Grounding location embossed in body.

Finish

  • Enclosure and cover are finished in ANSI 61 gray powder coating.

Documents

Complete My Build Verified fit verified

Heaters

Thermostats

Lighting

Warranty Information

Manufacturer Warranty: All products manufactured by Hammond are warrant to be free from defects in materials and workmanship for a period of one (1) year from date of shipment from its plant. If within such period any such goods shall be proven to Hammond’s satisfaction to be defective, such goods shall be repaired or replaced at Hammond’s option. Such corrections or replacement of defective goods shall constitute a fulfillment of all liabilities in respect to such goods. Under no circumstances will credit be allowed for unauthorized rework on any materials. Please contact your local Hammond Representative for warranty information pertaining to any Hammond offered product not manufactured by Hammond. THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hammond shall not be liable for damages to goods, property, or persons due to improper installation or through attempts to utilize the goods under conditions which exceed the designed capabilities.

Related Products

18P2121 | Hammond Manufacturing Steel back panel for use with 24in x 24in enclosures
Quick view

18P2121

$68.86
$127.84
Steel back panel for use with 24in x 24in enclosures
21in x 21in

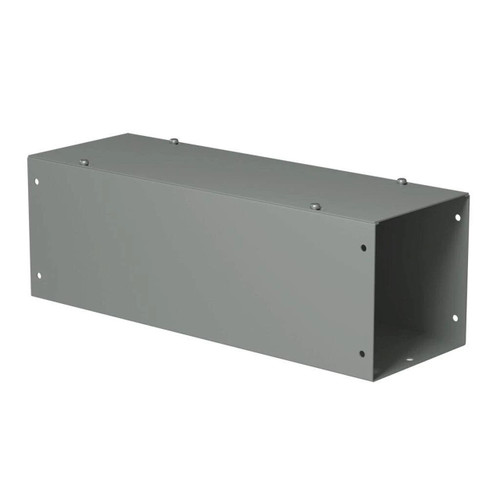

CWSC424NK Hammond Manufacturing 4in x 4in x 24in Painted Steel Straight Section Wireway with Screw Cover and no Knockouts
