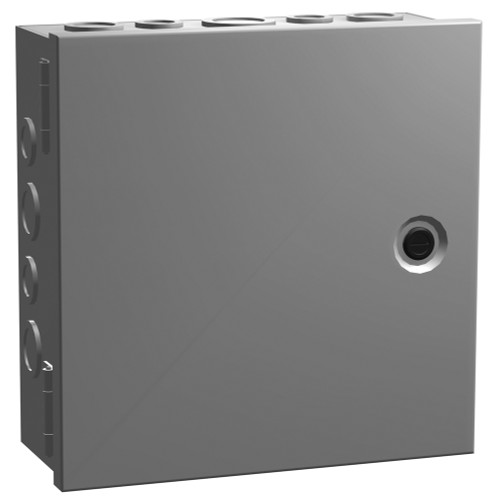

CHKO16126

Steel enclosure with hinge cover and quarter turn latch with knockouts
Representative Image Shown

$38.59
Product Condition: New
SKU:
CHKO16126
UPC:
623980361161
Weight:
13.00 LBS
Dimensions:
16in x 12in x 6in
Material:
Steel
Enclosure Type:
Knockouts
Cover Type:
Opaque
Closure Type:
Quarter Turn Latch
Mounting Type:
Through Holes

NEMA Rating

  • N1
    Indoor
    Protection from fingers, tools and small objects
  • N12
    Indoor
    Protection from dust and light splashes of water
  • N3R
    Outdoor
    Protection from rain, snow and sleet
  • N4
    Outdoor
    Protection from rain, snow, sleet, and hose directed water
  • N4X
    Outdoor
    Protected from rain, snow, sleet, and pressure rated hose directed water from all angles

Application

  • Designed for general purpose indoor commercial use as a junction, pull or switch box.
  • Hinged cover with latch provides easy access during installation and maintenance.

Standards

  • UL-50 Type 1
  • CSA Type 1
  • Complies with
    • NEMA Type 1
    • IEC 60529, IP20

Construction

  • Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
  • Formed steel covers close by use of slotted quarter turn latch.
  • Full swing, hinged door. NOTE: Former butt hinge being transitioned to new integral design starting late 2020. See image gallery for view of new hinge.
  • Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
  • Through holes in back for wall mounting.
  • Grounding location embossed in body.

Finish

  • Enclosure and cover are finished in ANSI 61 gray powder coating.

Warranty Information

All products manufactured by Hammond are warrant to be free from defects in materials and workmanship for a period of one (1) year from date of shipment from its plant. If within such period any such goods shall be proven to Hammond’s satisfaction to be defective, such goods shall be repaired or replaced at Hammond’s option. Such corrections or replacement of defective goods shall constitute a fulfillment of all liabilities in respect to such goods. Under no circumstances will credit be allowed for unauthorized rework on any materials. Please contact your local Hammond Representative for warranty information pertaining to any Hammond offered product not manufactured by Hammond. THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hammond shall not be liable for damages to goods, property, or persons due to improper installation or through attempts to utilize the goods under conditions which exceed the designed capabilities.
