Application - Hammond C3RWT472G
Application - Hammond C3RWT472G
- Designed for use to protect multiple wiring junctions in outdoor environments against the ingress of rain, sleet, snow and the external formation of ice.
Standards - Hammond C3RWT472G
Standards - Hammond C3RWT472G
- UL870 Type 3R
- CSA Type 3R
- Complies with
- NEMA Type 3R
- IEC 60529, IP24

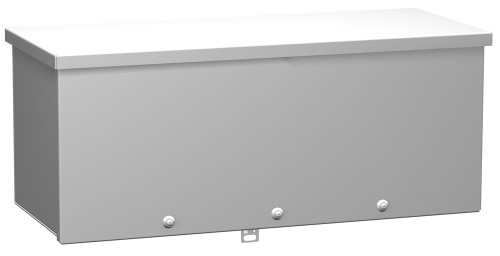

Construction - Hammond C3RWT472G
Construction - Hammond C3RWT472G
- Formed and spot welded from 14 or 16 gauge galvanized steel
- Drip shield top design protects the enclosure against rain, snow or sleet
- Embossed mounting holes on back of enclosure
- Slip on removable front cover is secured with screws
- Padlocking hasp
- To fully comply with UL870 - 2008 requirements a bonding stud is provided on the cover and a ground stud is provided in the enclosure
- A #10 AWG - 12" grounding strap with crimped on ring terminals is also provided to comply with UL requirements
Finish - Hammond C3RWT472G
Finish - Hammond C3RWT472G
- Unpainted galvanized steel.
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
