- SKU:
- AMP1204NL
- UPC:
- 85339974161
- Weight:
- 6.00 LBS
- Width:
- 10.15 in
- Height:
- 11.93 in
- Depth:
- 4.08 in
- Dimensions:
- 12in x 10in x 4in
- Material:
- Polycarbonate
- Enclosure Type:
- Wall Mounted
- Closure Type:
- Nonmetal Snap Latch
- Cover Type:
- Opaque
- Mounting Type:
- Nonmetal Feet

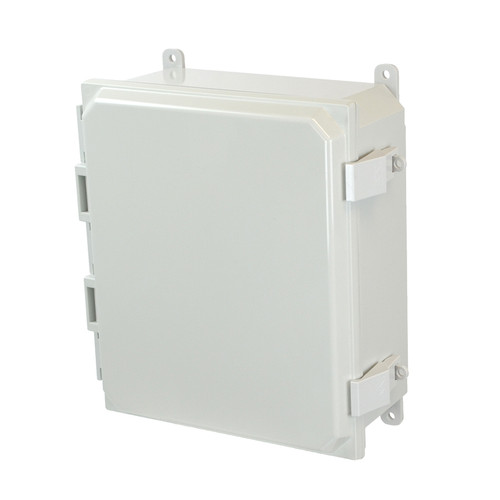

Representative image shown
AMP1204NL
Polycarbonate enclosure with hinged cover and nonmetal snap latch
$70.83
Factory New
Allied Moulded Products
Representative image shown
Versions (16)
Product Details
Specifications
Specifications
| Enclosure Type | JIC Size |
|---|---|
| Cover Type | Opaque |
| Closure Type | Nonmetal Snap Latch |
| Mounting Description | Nonmetal feet fastened to back side brass inserts |
| Height | 11.93 in |
| Width | 10.15 in |
| Depth | 4.08 in |
| Usable Depth | 4.16 in |
| Volume | 601 cu. in. |
| Brand | POLYLINE® |
| UPC | 85339974161 |
| UNSPSC | 39121324 |
| Carton Quantity | 5 lbs |
| Country of Origin | United States of America |
| Color | Gray (RAL 7035) |
| Patents | U.S. Patent No. 7,572,975 |
| Material | Polycarbonate box and cover |
| Additional Materials | 316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system |
Features
Features
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.
Applications
Applications
Enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
Standards
Standards
UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175
Complies with:
1. EN / IEC 60204-1 and 60529 Type IP66
2. RoHS directive
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
Versions (16)
Related Products
Warranty Information
Manufacturer Warranty: One Year Bumper to Bumper Warranty, Allied Moulded Products, Inc. warrants its Industrial Electrical Enclosures to be substantially free from defects in materials and workmanship when used in applications considered normal use for one year from the date of original shipment from our factory (or warehouse) or one year from documented field installation, not to exceed 24 months from the original shipment date from Allied Moulded. This “Bumper to Bumper” warranty covers the standard color fiberglass enclosure as well as hardware, modifications, and accessories supplied by Allied Moulded as part of the original enclosure.
This warranty expressly does not cover damage related to after-market or field modifications, repairs, misuse, handling, neglect, accident, improper storage, shipping damage, installation, or assembly damage.
Any enclosure deemed defective during the warranty period will be either repaired or replaced at Allied Moulded’s sole option. Repair or replacement of the enclosure in question along with any pre-approved, reasonable labor costs will constitute complete fulfillment of Allied Moulded’s liabilities.
