- SKU:
- AM363612L
- UPC:
- 85339940029
- Weight:
- 56.00 LBS
- Width:
- 36.25 in
- Height:
- 36.25 in
- Depth:
- 10.14 in
- Dimensions:
- 36in x 36in x 12in
- Material:
- Fiberglass
- Enclosure Type:
- Wall Cabinet
- Cover Type:
- Opaque
- Closure Type:
- Metal Snap Latch
- Mounting Type:
- Nonmetal Flange

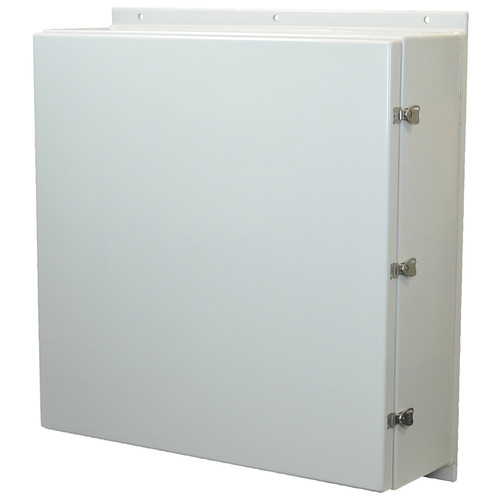

Representative image shown
AM363612L
Fiberglass Enclosure with Hinged Cover and Stainless-Steel Snap Latches
$2,164.05
Factory New
Allied Moulded Products
36″x36″x12″ Empire Series fiberglass wall mount enclosure assembly with hinged cover and stainless-steel snap latches
Representative image shown
Versions (2)
Product Details
Specifications
Specifications
| Enclosure Type | Wall Cabinets |
|---|---|
| Cover Type | Opaque |
| Closure Type | Metal Snap Latch |
| Mounting Description | Molded flange |
| Height | 36.25 in |
| Width | 36.25 in |
| Depth | 10.14 in |
| Usable Depth | 10.27 in |
| Volume | 15348 cu. in. |
| Brand | Empire Series |
| UPC | 85339940029 |
| UNSPSC | 39121324 |
| Carton Quantity | 1 |
| Carton Weight | 56 lbs |
| Country of Origin | India |
| Color | Gray (RAL 7035) |
| Material | ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover |
| Additional Materials | 316 stainless steel external hardware (hinges/latches/fasteners), EPDM Spring loaded gasket, Plated alloy steel bonding fastener, Plated carbon steel internal hardware |
Features
Features
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus molded-in mounting flanges and a spring loaded gasket system.
Applications
Applications
Enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
Standards
Standards
UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175
Complies with:
1. EN / IEC 60204-1 and 60529 Type IP66
2. RoHS directive
Documents for
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
Versions (2)
Related Products
Warranty Information
Manufacturer Warranty: One Year Bumper to Bumper Warranty, Allied Moulded Products, Inc. warrants its Industrial Electrical Enclosures to be substantially free from defects in materials and workmanship when used in applications considered normal use for one year from the date of original shipment from our factory (or warehouse) or one year from documented field installation, not to exceed 24 months from the original shipment date from Allied Moulded. This “Bumper to Bumper” warranty covers the standard color fiberglass enclosure as well as hardware, modifications, and accessories supplied by Allied Moulded as part of the original enclosure.
This warranty expressly does not cover damage related to after-market or field modifications, repairs, misuse, handling, neglect, accident, improper storage, shipping damage, installation, or assembly damage.
Any enclosure deemed defective during the warranty period will be either repaired or replaced at Allied Moulded’s sole option. Repair or replacement of the enclosure in question along with any pre-approved, reasonable labor costs will constitute complete fulfillment of Allied Moulded’s liabilities.
