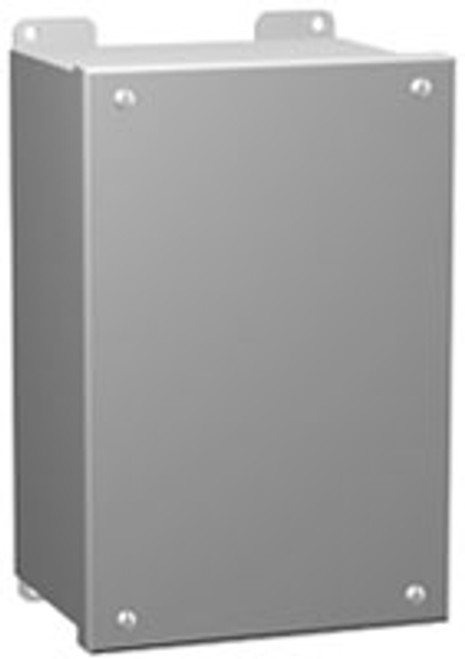

1436S | 11.7 x 10.7 x 3 Steel Enclosure with Lift-Off Cover and Screws

$121.22
$197.15
Write a Review
SKU:
1436S
Weight:
14.00 LBS
Series:
1436/1438
NEMA Rating:
NEMA 12
Enclosure Type:
Wallmounted
Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures. Provides a degree of protection from falling dirt, dust, oil and water.

Finish

Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.

Construction

Formed from 14 gauge steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Welded brackets provide for enclosure mounting. Lift off cover is secured with captive, plated steel screws, and supported on internal hinges except as noted on charts at bottom and right. Cover screws fasten into threaded, sealed wells. Oil resistant gaskets are permanently secured. A bonding stud is provided on the door and a grounding stud is provided on the enclosure.

Standards

UL 508 Type 12 and 13 CSA Type 12 and 13 Complies with NEMA Type 12 and 13 IEC 60529, IP54
