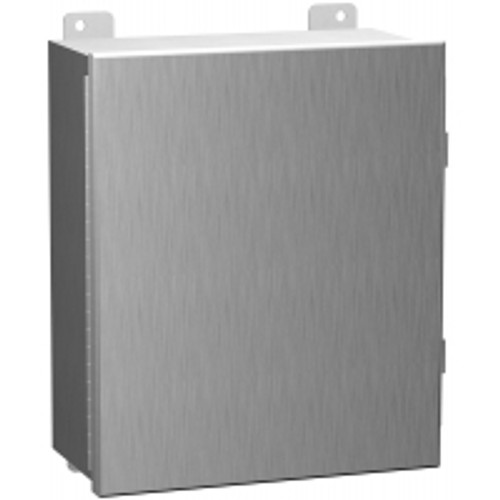

1414N4PHS16K | 12 x 10 x 5 Hinged Enclosure Cover With Panel

$403.77
$732.50
Write a Review
SKU:
1414N4PHS16K
Weight:
20.00 LBS
Material:
316 Stainless Steel
Series:
1414N4PSS
NEMA Rating:
NEMA 4X
Enclosure Type:
Wall Mounted
Hammond Maufacturinig Enclosures are designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.

Construction

Formed 304 or 316 stainless steel. Continuously welded seams ground smooth. Door stiffeners are provided where required for increased strength and rigidity. Formed lip on enclosure to exclude flowing liquids and contaminants. 316 Stainless pad lockable handle with 3 point roller latching system secures door. Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin Seamless poured-in place gasket. Collar studs provided for mounting inner panel. Bonding stud provided on door and grounding stud installed in enclosure.

Finish

Cover and enclosure are natural stainless steel with smooth brushed finish.

Standards

UL 508 Type 3R, 4, 4X and 12 CSA Type 3R, 4, 4X and 12 Complies with NEMA 3R, 4, 4X, 12 and 13 IEC 60529, IP 66

Applications

Provides high level of protection where equipment is hosed down or otherwise be exposed to wet conditions where corrosion is a serious problem. Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required.
