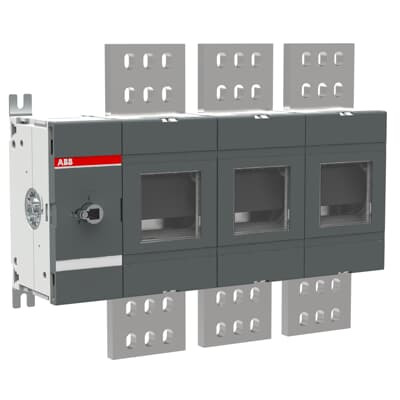

Specifications
Specifications
| Product Net Width | 472.5 mm |
|---|---|
| Product Net Height | 376.5 mm |
| Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 24.9 kg |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 2500 A |
| Distance Between Phases | Standard |
| Mechanical Durability | 6000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals |
Top In - Bottom Out
Bottom In - Top Out
|
| Power Loss |
at Rated Operating Conditions per Pole 85 W
|
| Rated Impulse Withstand Voltage (Uimp) |
12 kV
|
| Rated Insulation Voltage (Ui) |
acc. to IEC/EN 60664-1 1000 V
|
| Rated Operational Current AC-21B (Ie) |
(380 ... 415 V) 2500 A
(500 V) 2500 A
(690 V) 2500 A
|
| Rated Operational Current AC-22B (Ie) |
(380 ... 415 V) 2500 A
(500 V) 2500 A
(690 V) 2500 A
|
| Rated Operational Voltage |
Main Circuit 1000 V
|
| Rated Short-Circuit Making Capacity (Icm) |
(690 V) 176 kA
|
| Rated Short-time Withstand Current Low Voltage (Icw) |
for 1 s 55 kA
|
| Special Functions |
No
|
| Standards |
IEC 60947-3
|
| Switches Operating Mechanism |
Mechanism at the End of the Switch
03 (Left Side)
|
| Terminal Type |
Lug terminals
|
| Tightening Torque |
acc. IEC 60947-1 50 … 75 N·m
|
