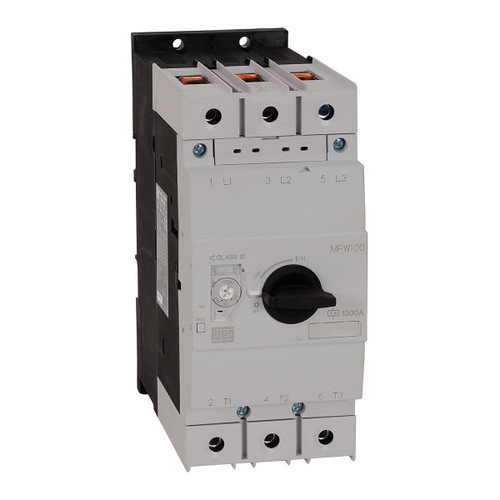

MPW motor protective circuit breakers are a compact solution for starting and protecting electric motors up to 100 A. They feature high interrupting capacity, allowing their use even in installations with high short-circuit current levels. They ensure full protection of the electrical circuit and the motor through their thermal release (adjustable for overload protection and equipped with a differential mechanism sensitive to phase loss) and magnetic release (calibrated for short-circuit protection).
They are available in push-button operated versions (MPW12/18) or rotary-operated versions (MPW40/80/100), and include trip indication (Trip) — only for the rotary handle — allowing the operator to view the breaker status. The breakers can be padlocked in the OFF position, thus ensuring safety during maintenance.
Specifications
| Reference | MPW100 |
|---|---|
| Maximum rated current Ie | 100 A |
| Setting range for thermal release | 80-100 A |
| Number of poles | 3 |
| Short-circuit release | 13 x Iemax |
| Rated operational voltage Ue | 690 V |
| Rated operational frequency | 50/60 Hz |
| Rated insulation voltage Ui | 1000 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Utilization category - IEC60947-2 (motor starter protector/circuit breaker) | A |
| Utilization category - IEC60947-4-1 (Motor Starters) | AC-3 |
| Trip test | Yes |
| Overload protection | Yes |
| Phase failure sensitivity | Yes |
| Trip indication | Yes |
| Tripping class | 10 |
| Maximum operating frequency (ops./h) | 25 |
| Degree of protection | IP20 |
| Height | 165 mm / 6.5 in |
| Width | 70 mm / 2.76 in |
| Depth | 171 mm / 6.73 in |
| Gross weight | 2,20 kg / 4.85 lb |
