Specifications - Eaton DH1-34072DN-C21C

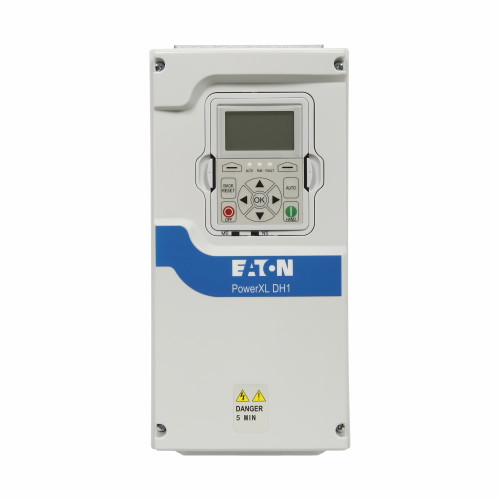

| Product Name | Eaton PowerXL DH1 variable frequency drive |
|---|---|
| Catalog Number | DH1-34072DN-C21C |
| Product Length/Depth | 9.36 in |
| Product Height | 24.8 in |
| Product Width | 11.57 in |
| Product Weight |
77.61 lb
|
| Manufacturer Warranty |
Eaton Selling Policy 25-000 generally applies with some exceptions. Drive products come with a standard 24 months from date of shipment and 36 months with Eaton certified start up all inclusive coverage parts labor and travel.
|
| Compliances | CE Marked C-Tick Compliant GoST-R RoHS Compliant |
| Certifications |
IEC 61508
EN ISO 13849-1 UL Listed UL 508C cUL Listed EN 62061 |
| Max Overload | 110% for 1 minute |
| Modification | DC choke |
| Options | Without EMC filter |
| Rating | IP21 |
| Motor Control Modes | Frequency Control, Speed Control, Open Loop Speed Control, Open Loop Torque Control |
| internal DC Choke | Yes |
| Conformal Coated Boards | Yes |
| Low Overload (VT) kW | 37 kW |
| Amperage Rating | 72A |
| Communications Onboard | BACnet/IP, Modbus TCP, Modbus RTU, BACnet MS/TP |
| Motor Type | Induction |
| Electromagnetic Compatibility Filter | None |
| User Interface | Graphical Keypad |
| Extended I/O Card | BACnet MSTP/IP |
| Power Consumption | 45 kW 37 kW |
| Horsepower | 50 HP |
| Voltage Rating |
480 V
|
| Communication | Modbus RTU/TCP |
| Communication Interface | PROFIBUS-DP |
| Low Overload (VT) HP | 50 HP |
| Low Overload (VT) Amps | 72A |
| Output Frequency Range | 0 - 400 Hz |
| Series | DH1 |
| Relay Outputs | 3 |
| Input Voltage Range | 380 - 480 Vac |
| Recommended Fuse Size | 100A |
| Keypad | Included |
| Input Frequency Range | 50 - 60 Hz |
| Display | LCD graphical |
Warranty Information
Manufacturer Warranty: Eaton Selling Policy 25-000 generally applies with some exceptions. Drive products come with a standard 24 months from date of shipment and 36 months with Eaton certified start up all inclusive coverage parts labor and travel.
