- SKU:
- C25FNF360A
- UPC:
- 782113476131
- Weight:
- 2.70 LBS
- Width:
- 2.63 in
- Height:
- 3.75 in
- Depth:
- 3.97 in
- Style:
- Compact Definite Purpose
- Number of Poles:
- 3 Pole
- Amperage:
- 60 Amps
- Coil:
- 110 - 120V AC

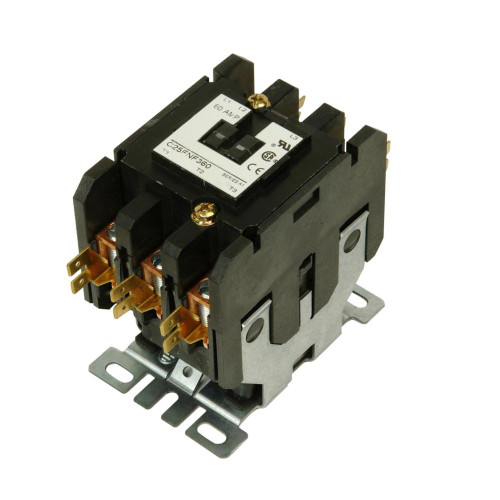

Representative image shown
C25FNF360A
Definite Purpose Contactor (60A, 110-120 Vac, 50/60 Hz)
$170.29
Factory New
Eaton
Eaton definite purpose contactor, Quick, 60A, 110-120 Vac, 50/60 Hz, Open with metal mounting plate, 15-50A, two- and three-pole, 60A, Contactor, Three-pole, 75A, Box lugs (posidrive setscrew) and quick connect terminals (side-by-side)
Representative image shown
Versions (5)
Product Details
Specifications
Specifications
| Product Name |
Eaton definite purpose contactor
|
|---|---|
| Catalog Number |
C25FNF360A
|
| UPC |
782113476131
|
| Product Length/Depth |
3.97 in
|
| Product Height |
3.75 in
|
| Product Width |
2.63 in
|
| Product Weight |
2.7 lb
|
| Manufacturer Warranty |
1 year
|
| Compliances |
RoHS Compliant
|
| Certifications |
CSA Certified
UL Recognized |
| Catalog Notes |
Resistive Load rating per pole
|
| Product Type |
Definite purpose contactor
|
| Amperage Rating |
60A
|
| Number of poles |
Three-pole
|
| Type |
Non-reversing
|
| Coil |
110-120 Vac, 50/60 Hz
|
| Enclosure |
Open with metal mounting plate
|
| Frame size |
15-50 A, two-pole and three-pole
|
| Inductive full load |
60 A
|
| Model |
Contactor
|
| Resistive load |
75 A
|
| Terminals |
Box lugs (posidrive setscrew) and quick connect terminals (side-by-side)
|
| Connection |
Quick
|
Versions (5)
Related Products
Warranty Information
Manufacturer Warranty: 1 year
