Specifications
Specifications
| Product Name |

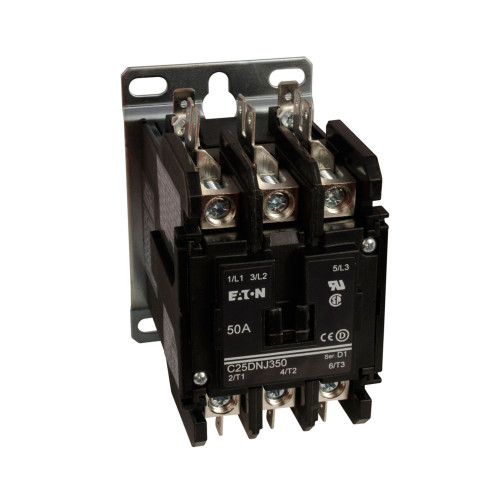

Eaton definite purpose contactor
|
|---|---|
| Catalog Number |
C25DNJ2501T-GL
|
| UPC |
786685699769
|
| Product Length/Depth |
3.35 in
|
| Product Height |
3.75 in
|
| Product Width |
2.4 in
|
| Product Weight |
1.3 lb
|
| Manufacturer Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
CSA Certified
UL Listed file E1491 (Guide Number NLDX2) |
| Product Type |
Definite purpose contactor
|
| Accessories |
Mounting plate
|
| Number of poles |
Two-pole
|
| Options |
Global listed
|
| Type |
Non-reversing
|
| Auxiliary contacts |
Quick connect (vertical in-line)
|
| Coil voltage |
24 Vdc
|
| Enclosure |
Open with metal mounting plate
|
| Frame size |
15-50 A, two-pole and three-pole
|
| Model |
Contactor
|
| Series |
D1
|
| Terminals |
Box lugs (posidrive setscrew)
|
| Connection |
Quick
|
Related Products
Warranty Information
Manufacturer Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
