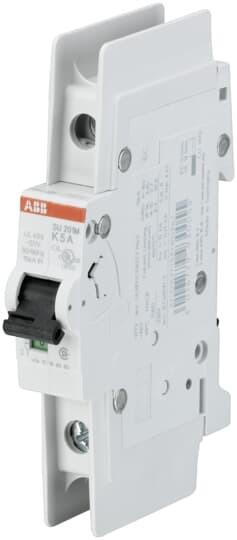

Specifications
Specifications
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) |
(230 V AC) 15 kA
(230 V) 15 kA
|
|---|---|
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 11.2 kA |
| Energy Limiting Class | 3 |
| Number of Protected Poles | 1 |
| Number of Poles | 1P |
| Accessories Available | Yes |
| Connecting Capacity |
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm²
|
| Terminal Type | Double Clamp |
| Tripping Characteristic | C |
| Rated Operational Voltage |
acc. to IEC 60898-1 277 V AC
acc. to IEC 60947-2 230 V AC
|
| Rated Insulation Voltage (Ui) |
acc. to IEC/EN 60664-1 440 V
|
| Rated Impulse Withstand Voltage (Uimp) |
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
|
| Input Voltage Type |
AC/DC
|
| Rated Current (In) |
7 A
|
| Rated Short-Circuit Capacity |
(400 V AC) 11.2 kA
|
| Rated Conditional Short-Circuit Current (Inc) |
(400 V) 10 kA
|
| Rated Frequency (f) |
50 / 60 Hz
DC
|
| Power Loss |
1.5 W
at Rated Operating Conditions per Pole 1.5 W
|
| Overvoltage Category |
III
|
| Interrupting Rating acc. to UL489 |
(240 V AC) 10 kA
(277 V AC) 10 kA
(48 V DC) 10 kA
|
| Ambient Air Temperature |
Operation -25 ... +55 °C
|
| Degree of Protection |
IP20
|
| Pollution Degree |
3
|
| Width in Number of Modular Spacings |
1
|
| Product Net Width |
17.5 mm
|
| Product Net Height |
111 mm
|
| Product Net Depth / Length |
69 mm
|
| Product Net Weight |
0.122 kg
|
| Built-In Depth (t2) |
69 mm
|
