| Product Name |

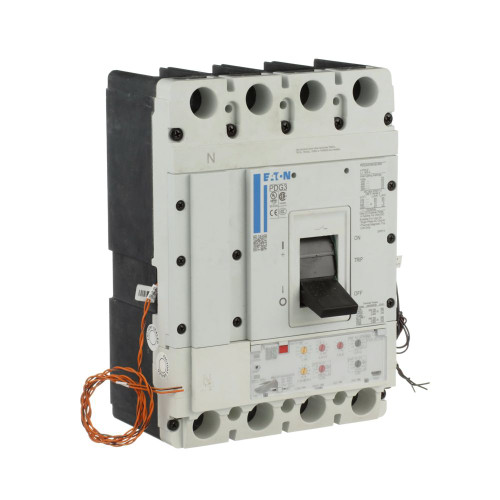

Eaton Power Defense molded case circuit breaker
|
|---|---|
| Catalog Number |
PDG34GH250E3XJ
|
| UPC |
786679520116
|
| Product Length/Depth |
109.1 mm
|
| Product Height |
257.1 mm
|
| Product Width |
182.9 mm
|
| Product Weight |
7.68 kg
|
| Manufacturer Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
RoHS Compliant
|
| Certifications |
CCC Marked
UL 489 CSA IEC 60947-2 |
| Product Type |
Molded case circuit breaker
|
| Amperage Rating |
250A High Override
|
| Circuit breaker frame type |
Complete breaker
|
| Frame |
3
|
| Number of poles |
Four-pole (100% N)
|
| Circuit breaker type |
PD3 Global
|
| Class |
Class A
|
| Trip Type |
T285
|
| Communication |
CAM Link
|
| Voltage rating |
600 Vac
|
| Protection |
100% neutral protection
|
| Terminals |
Standard Line and Load
|
| Interrupt rating |
35 kAIC at 480 Vac
|
| Interrupt rating range |
10 kAIC Icu @250 Vdc
18 kAIC @600V (UL/CSA) 35 kAIC @480V (UL) 55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC) 8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm @690V (IEC) 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC) 30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC) 20 kAIC Icu/ 7.5 kAIC Ics/ 42 kAIC Icm @525V South Africa (IEC) 65 kAIC @240V (UL) 36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm @380-415V (IEC) |
| Trip rating |
250 A high override
|
