SSW070412T5SH2Z

Soft Starter (412 Amps, 220-575V, Frame Size: 4)

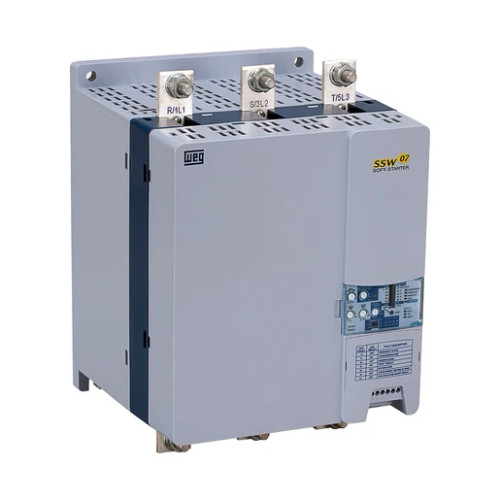

Representative image shown

$3,713.68
$6,088.00
Product Condition: New

Weg, Soft Starter, SSW07 Series, IP00 Enclosure Rating, With DSP (Digital Signal Processor), 412A, 220-575V, 4 Frame Size, No Torque Control

SKU:
SSW070412T5SH2Z
Weight:
41.92 LBS
Amperage:
412 Amps
Voltage:
220 - 575 V
Frame Size:
4
Series:
SSW07

Soft-Starters are static starters that accelerate, decelerate and protect three-phase induction motors. The control of the voltage applied to the motor by means of adjustments to the firing angle of thyristors allows the soft-starter to start and stop an electric motor smoothly.

The SSW070412T5SH2Z, with DSP (Digital Signal Processor) control was designed for high performance on motor starts and stops with an excellent cost-benefit ratio. Easy to set up, it simplifies start-up activities and daily operation.

The SSW070412T5SH2Z is compact optimizing space in electric panels. It already incorporates electric motor protection. It adapts to customer needs through its easy-to-install optional accessories.

The SSW070412T5SH2Z adapts to customer needs through its easy-to-install optional accessories. Thus, a keypad, a communication interface or a motor PTC input can be added to the product.

Note: SSW07 Soft-Starter Series were designed for exclusively industrial or professional use.

Features

SSW070412T5SH2Z Weg Soft Starter (412 Amps, 220-575V, Frame Size: 4)

Protection and Efficiency for Your Application

The SSW07 soft-starter is a static starter, designed for the acceleration, deceleration and protection of three-phase induction motors by controlling the voltage applied to the motor. Compact, it contributes to optimizing spaces in electric panels, and it has all the protections for the electric motor, adapting to the application requirements through optional accessories, which can be easily installed on the soft-starter.

Main Characteristics
  • Currents: 412 A
  • Voltage: 220 to 575 V
  • Built-in bypass
  • High starting duty
  • Total control on the three phases
  • Protection of the motor and built-in starter
  • "Kick-Start" function for starting loads with high static friction
  • Remote or local HMI (optional)
  • Input for the motor PTC (optional)
  • Operation in environments up to 55 °C
  • Extremely reduced weights and dimensions
  • RS-232, RS-485, DeviceNet or Ethernet communication (optional)
Operating interface (HMI)

7-segment LED display, providing excellent visibility of the parameters. It also incorporates the copy function, which allows you to copy the parameter setting from one SSW07 to another, providing programming agility, reliability and repeatability in the manufacturing process of serial machines.

Network Communication

Especially designed to integrate large industrial automation plants, the Fieldbus communication networks provide advantages in the complete, on-line supervision, monitoring and control of the SSW07, producing high performance and great operational flexibility, characteristic required by applications on complex and/or integrated systems.

Benefits

SSW070412T5SH2Z Weg Soft Starter (412 Amps, 220-575V, Frame Size: 4)

Applications

SSW070412T5SH2Z Weg Soft Starter (412 Amps, 220-575V, Frame Size: 4)

The three-phase voltage control on the SSW070412T5SH2Z allows its use in applications considered heavy, such as:

  • Alternate
  • Centrifugal pumps (sanitation, irrigation and oil)
  • Fans
  • Exhausters
  • Blowers
  • Air compressors
  • Refrigeration (screw and piston)
  • Mixers
  • Aerators
  • Centrifuges
  • Rock crushers
  • Grinders
  • Wood-chippers
  • Paper refiners
  • Rotary ovens
  • Wood saws and planes
  • Ball and hammer mills
  • Load conveyors

Specifications

SSW070412T5SH2Z Weg Soft Starter (412 Amps, 220-575V, Frame Size: 4)
